INTRODUCTIONS |
The Mini-vol Air Sampler is designed for atmospheric aerosol sampling with a flowrate of 5 liters per minute (LPM). The small size and light weight make it convenient to do sampling at different locations. Besides AC power supply, the sampler can be operated by a provided rechargeable 12V DC Li-ion battery for more than 24 hours. This advantages sampling at remote location where AC power is inaccessible. By utilizing different impactor nozzles, the Mini-vol sampler can be used for TSP, PM10, PM2.5 or PM1 collection. The air flowrate is strictly controlled by a pulse-width modulation (PWM) control module includes an orifice and a differential pressure sensor for flowrate monitoring. Accurate flowrate control is critical to achieve precise size-cut of the impactor. |
Features • Waterproof design for all-weather outdoor sampling. • Interchangeable nozzles for TSP, PM10, PM2.5 and PM1 sampling. • Continuous operation by a rechargeable DC battery for >24 hours. Switch-able between AC and DC power supply. • Easy to transport. • Real-time feedback flowrate control. • Programmable timer.
|
SPECIFICATIONS: |

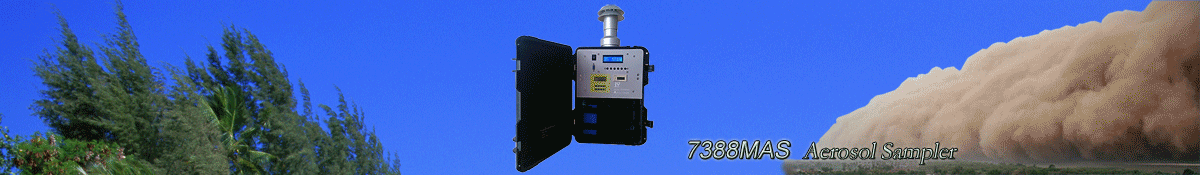

7388MAS Aerosol Sampler |
Accessories Of 7388MAS: |
Filter Holder Opener The 47mm filter holder is tightly sealed and hard to open by hands. This tool is specially designed to open the filter holder.
Feature Simple to use Specification Material: aluminum alloy |
Impactors These single-stage impactors are designed for a flow rate of 5LPM. It’s base on Marple principle. We have calculate out the best size of the impactors. Now we have three different particle size impactors:PM10, PM2.5 and PM1.0 . Feature Simple to use and clean |
Filter Holder This 47mm filter holder is widely used in various small flow aerosol sampler.
Feature Perfectly seal, low cost Specification Support ring material: PPC Support screen material: stainless steel Size: 54mm(Dia.)x10mm(thickness) |
PROJECTS |
RANG |
ACCURACY |
Flowrate |
5LPM |
±2% |
Partical Size |
TSP,PM10,PM2.5,PM1.0 |
|
Sample Last Time |
≥24h |
|
Filter Size |
47mm |
|
Timer Standard |
99小时59分59秒 |
±0.02% |
Save Interval |
5s,10s,30s,1min,5min。 |
|
Weight |
8.5kg |
|
Size |
26cm×19.5cm×37.5cm |
|
Work Condition |
-10~40℃ |
|
Power |
12V DC |
|
